Service Manual
TOP NEXT
ORDER NO. KM40305091C3
Telephone Equipment

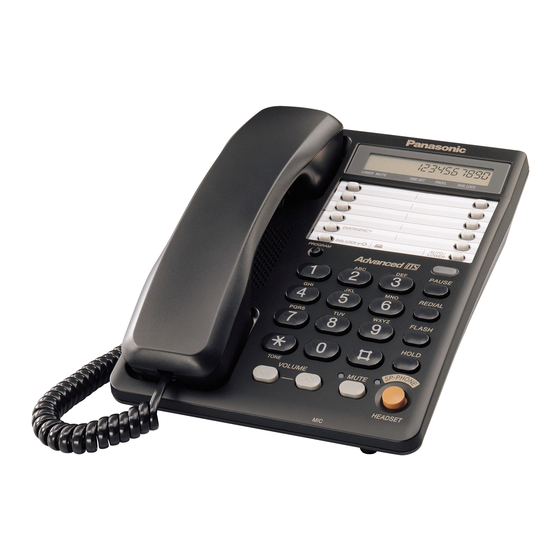

KX-TS2365RUB
Integrated Telephone System
Black Version
(for Russia)
file:///C|/Documents and Settings/eDOK/Рабочий стол/KX-TS2365RUB.htm (1 of 2)11.02.2008 12:53:07
Related Manuals for Panasonic KX-TS2365RUB
Summary of Contents for Panasonic KX-TS2365RUB
-
Page 1
Settings/eDOK/Рабочий стол/KX-TS2365RUB.htm Service Manual TOP NEXT ORDER NO. KM40305091C3 Telephone Equipment KX-TS2365RUB Integrated Telephone System Black Version (for Russia) file:///C|/Documents and Settings/eDOK/Рабочий стол/KX-TS2365RUB.htm (1 of 2)11.02.2008 12:53:07… -
Page 2
Settings/eDOK/Рабочий стол/KX-TS2365RUB.htm © 2003 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. TOP NEXT file:///C|/Documents and Settings/eDOK/Рабочий стол/KX-TS2365RUB.htm (2 of 2)11.02.2008 12:53:07… -
Page 3: Table Of Contents
4.2 Battery Replacement 5 LOCATION OF CONTROLS 6 DISPLAY 7 CONNECTION 7.1 Connecting the Handset/Telephone Line Cord 7.2 Connecting a Communication Device 8 SETTINGS 8.1 Selecting the Dialing Mode 8.2 Setting the PIN Code 8.3 Dial Lock http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/2365rub.html (1 of 4)11.02.2008 12:53:22…
-
Page 4
11 TROUBLE SHOOTING GUIDE 11.1 Service Hints 11.2 Pulse Dialing Problems 11.3 Tone Dialing Problems (Handset) 11.4 No Ringing Sound When Ring Signal is Input. 12 BLOCK DIAGRAM 13 CIRCUIT OPERATION 13.1 Bell Detector Circuit 13.2 Line Interface http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/2365rub.html (2 of 4)11.02.2008 12:53:22… -
Page 5
14 CPU DATA 14.1 IC801 15 HOW TO SET THE FLASH TIME AND REDIAL TIME 15.1 Flash Time 15.2 Redial Time 15.3 Speakerphone IC Data 16 BLOCK DIAGRAM (IC 1) 16.1 Communication ICs 17 MODULE BLOCK DIAGRAM http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/2365rub.html (3 of 4)11.02.2008 12:53:22… -
Page 6
22.1.1 Cabinet and Electrical Parts 22.1.2 Main P.C. Board Parts 22.2 ACCESSORIES AND PACKING MATERIALS 23 FOR SCHEMATIC DIAGRAM (SCHEMATIC DIAGRAM) 24 SCHEMATIC DIAGRAM 25 CIRCUIT BOARD 25.1 Component View 25.2 Flow Solder Side View http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/2365rub.html (4 of 4)11.02.2008 12:53:22… -
Page 7: About Lead Free Solder (Pbf: Pb Free)
PbF solder as possible and be sure that any remaining is melted prior to applying the Pb solder. When applying PbF solder to double layered boards, please check the component side for excess which may flow onto the opposite side (See the figure below). http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0100000000x.html (1 of 2)11.02.2008 12:53:52…
-
Page 8
1.1 Suggested PbF Solder 1.2 How to recognize that Pb Free solder is used TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0100000000x.html (2 of 2)11.02.2008 12:53:52… -
Page 9: Suggested Pbf Solder
(Sn+Zn+Bi). Please check the manufac turer’s specific instructions for the melting points of their products and any precautions for using their product with other materials. The following lead free (PbF) solder wire sizes are recommended for service of this product: 0.3mm, 0.6mm and 1.0mm. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0101000000.html11.02.2008 12:53:59…
-
Page 10: How To Recognize That Pb Free Solder Is Used
1.2 How to recognize that Pb Free solder is used TOP PREVIOUS NEXT (Flow Solder Side View) TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0102000000.html11.02.2008 12:54:04…
-
Page 11
D105 C202 R201 C901 C101 C102 Marked C105 Q191 VR601 C308 J102 VR901 VR402 C114 VR401 R192 R191 R194 IC601 C401 C621 C619 C427 D308 R654 D421 C651 C618 SW101 C625… -
Page 12: For Service Technicians
When repairing, the following precautions will help prevent recurring malfunctions. 1. Cover plastic parts boxes with aluminum foil. 2. Ground the soldering irons. 3. Use a conductive mat on worktable. 4. Do not grasp IC or LSI pins with bare fingers. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0200000000x.html11.02.2008 12:54:17…
-
Page 13: Caution
3 CAUTION TOP PREVIOUS NEXT Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer´s Instructions. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0300000000x.html11.02.2008 12:54:22…
-
Page 14: Battery
4 BATTERY TOP PREVIOUS NEXT 4.1 Installing the Batteries 4.2 Battery Replacement TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0400000000x.html11.02.2008 12:54:26…
-
Page 15: Installing The Batteries
4.1 Installing the Batteries TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0401000000.html11.02.2008 12:54:30…
-
Page 16: Battery Replacement
4.2 Battery Replacement TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0402000000.html11.02.2008 12:54:36…
-
Page 17: Location Of Controls
5 LOCATION OF CONTROLS TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0500000000x.html11.02.2008 12:54:43…
-
Page 18: Display
6 DISPLAY TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0600000000x.html11.02.2008 12:54:48…
-
Page 19: Connection
7 CONNECTION TOP PREVIOUS NEXT 7.1 Connecting the Handset/Telephone Line Cord 7.2 Connecting a Communication Device TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0700000000x.html11.02.2008 12:54:52…
-
Page 20: Connecting The Handset/Telephone Line Cord
7.1 Connecting the Handset/Telephone Line Cord TOP PREVIOUS NEXT After connection, lift the handset to check for a dial tone. Use only a Panasonic Handset for the KX-TS2365RUB. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0701000000.html11.02.2008 12:54:55…
-
Page 21: Connecting A Communication Device
After connecting the handset and telephone line cord, connect the communication device telephone line cord to the DATA jack. Make sure the communication device is not in use before using this unit (making calls, storing phone numbers in memory etc.) or the communication device may not operate properly. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0702000000.html11.02.2008 12:55:00…
-
Page 22: Settings
8.2 Setting the PIN Code 8.3 Dial Lock 8.3.1 To Set the Dial Lock 8.3.2 To Cancel the Dial Lock 8.4 Call Restriction 8.4.1 To Set the Call Restriction 8.5 How to Release the Establishment of Dial Lock TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0800000000x.html11.02.2008 12:55:07…
-
Page 23: Selecting The Dialing Mode
You can select the dialing mode by programming. If you have touch tone service, set to «Tone». If rotary or pulse service is used, set to «Pulse». Your phone comes from the factory set to «Pulse». Make sure that a call is not put on hold. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0801000000.html11.02.2008 12:55:10…
-
Page 24: Setting The Pin Code
The PIN Code is required for the dial lock and call restriction to be set or canceled. The factory preset PIN code is » 1111 «. Make sure that a call is not put on hold. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0802000000.html11.02.2008 12:55:15…
-
Page 25: Dial Lock
If you choose not to program emergency numbers, but plan to use the dial lock, any number programmed into the EMERGENCY button can be accessed. 8.3.1 To Set the Dial Lock 8.3.2 To Cancel the Dial Lock TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0803000000.html11.02.2008 12:55:21…
-
Page 26: To Set The Dial Lock
You can use the following features while the dialing buttons are locked. Dialing a number you programmed into the memory of the EMERGENCY button. Adjusting the handset and speakerphone volumes. Muting the conversation. Answering the second call by pressing TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0803010000.html11.02.2008 12:55:29…
-
Page 27: To Cancel The Dial Lock
8.3.2 To Cancel the Dial Lock TOP PREVIOUS NEXT Follow steps 1 through 3 above again. “ “ will disappear, and the unit will return to the standby mode. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0803020000.html11.02.2008 12:55:33…
-
Page 28: Call Restriction
You can prevent the unit from dialing phone numbers beginning with specified digit(s) (1 digit or 2 digits). Phone numbers with the restricted leading digits cannot be dialed out. 8.4.1 To Set the Call Restriction TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0804000000.html11.02.2008 12:55:42…
-
Page 29: To Set The Call Restriction
If your unit is connected to a PBX, this function may not operate. Contact your PBX supplier for more information. When dialing a phone number with the restricted leading digit(s), the dialed number will flash on the display, but not dialed out. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0804010000.html11.02.2008 12:55:45…
-
Page 30: How To Release The Establishment Of Dial Lock
8.5 How to Release the Establishment of Dial Lock TOP PREVIOUS NEXT After this procedure, you will be able to establish a new password. How to release the establishment of dial lock. http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0805000000.html (1 of 2)11.02.2008 12:55:52…
-
Page 31
TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0805000000.html (2 of 2)11.02.2008 12:55:52… -
Page 32: Operations
9 OPERATIONS TOP PREVIOUS NEXT 9.1 Making Calls 9.2 Answering Calls 9.3 FLASH Button TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0900000000x.html11.02.2008 12:56:02…
-
Page 33: Making Calls
9.1 Making Calls TOP PREVIOUS NEXT You can make a call by simply lifting the handset. To hang up, place the handset on the cradle. http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0901000000.html (1 of 2)11.02.2008 12:56:05…
-
Page 34
TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0901000000.html (2 of 2)11.02.2008 12:56:05… -
Page 35: Answering Calls
9.2 Answering Calls TOP PREVIOUS NEXT While a call is being received, the unit rings and the ringer indicator flashes. You can answer it by simply lifting the handset. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0902000000.html11.02.2008 12:56:10…
-
Page 37: Flash Button
(optional) such as callwaiting. If you are connected via a PBX, a longer flash time may be necessary to use PBX functions (transferring a call, etc.). Consult your PBX installer for the correct setting. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s0903000000.html11.02.2008 12:56:16…
-
Page 38: Disassembly Instructions
TOP PREVIOUS NEXT Shown in Fig -. To remove -. Remove -. Lower Cabinet Screws (2.6×12) … . . (A)×5 Main P.C. Board The Main P.C.Board TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1000000000x.html11.02.2008 12:56:26…
-
Page 39: Trouble Shooting Guide
11 TROUBLE SHOOTING GUIDE TOP PREVIOUS NEXT 11.1 Service Hints 11.2 Pulse Dialing Problems 11.3 Tone Dialing Problems (Handset) 11.4 No Ringing Sound When Ring Signal is Input. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1100000000x.html11.02.2008 12:56:30…
-
Page 40: Service Hints
Can’t speak with the headset. Check headset jack Can’t change the volume for speakerphone. Check IC801, IC601 Can’t change the volume for handset. Check IC801, Q405 No volume handset or speakerphone. Check IC801, Q108, Q401. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1101000000.html11.02.2008 12:56:33…
-
Page 41: Pulse Dialing Problems
11.2 Pulse Dialing Problems TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1102000000.html11.02.2008 12:56:39…
-
Page 42: Tone Dialing Problems (Handset)
11.3 Tone Dialing Problems (Handset) TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1103000000.html11.02.2008 12:56:44…
-
Page 43: No Ringing Sound When Ring Signal Is Input
11.4 No Ringing Sound When Ring Signal is Input. TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1104000000.html11.02.2008 12:56:48…
-
Page 44: Block Diagram
12 BLOCK DIAGRAM TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1200000000b.html11.02.2008 12:56:57…
-
Page 45
Q108 Q101, Q103 D101 LINE Handset Transmit Dial Speaker Receiving IC801 IC201 Q421, Q424 Head Set Handset Tone Speaker Detection Sending Data IC601 Speaker SP-PHONE Key Board Switch 3.7V Battery IC302 4.5V IC303 IC304 (Reset) Q302 Battery KX-TS2365RUB: BLOCK DIAGRAM… -
Page 46: Circuit Operation
13.1 Bell Detector Circuit 13.2 Line Interface 13.3 Speakerphone Circuit 13.3.1 Function 13.3.2 Circuit Operation 13.4 Telephone Line Interface 13.4.1 Circuit operation 13.5 Tone Detect 13.5.1 Circuit operation 13.6 Initializing Circuit 13.6.1 Function 13.6.2 Circuit operation TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1300000000x.html11.02.2008 12:57:05…
-
Page 47: Bell Detector Circuit
TOP PREVIOUS NEXT When the bell signal is input between T/R, the signal are outputted at the speaker via the following path: Tel line R1/C1 Pin 1 of IC1 Pin 8 of IC1 C625 Speaker TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1301000000.html11.02.2008 12:57:09…
-
Page 48: Line Interface
R124 D106in that order, A pulse signal that repeated switches between high and low logic is output from pin 26 of the CPU.This switches the line loop on and off, generating the dial pulse signal. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1302000000.html11.02.2008 12:57:14…
-
Page 49: Speakerphone Circuit
13.3 Speakerphone Circuit TOP PREVIOUS NEXT 13.3.1 Function 13.3.2 Circuit Operation TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1303000000.html11.02.2008 12:57:17…
-
Page 50: Function
13.3.1 Function TOP PREVIOUS NEXT The circuit controls the automatic switching of the transmitted and received signals, to and from the telephone line, when the unit is used in the hands -free mode. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1303010000.html11.02.2008 12:57:24…
-
Page 51: Circuit Operation
Pin 27 of IC601 Pin 26 of IC601 Pin19 of IC601 Pin 15 of IC601 Speaker. Transmission/Reception switching The comparison result between TX and RX outputs as a DC level of Pin 25 of IC601.TX level is http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1303020000.html (1 of 2)11.02.2008 12:57:28…
-
Page 52
The output of the mic amp (Pin 10 of IC601) is supplied to Pin 13 of IC601 as a control signal for the voice detector. Attenuator control The attenuator control detects the setting of the volume control through Pin 24 of IC601 to automatically adjust for changing ambient conditions. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1303020000.html (2 of 2)11.02.2008 12:57:28… -
Page 53: Telephone Line Interface
13.4 Telephone Line Interface TOP PREVIOUS NEXT 13.4.1 Circuit operation TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1304000000.html11.02.2008 12:57:35…
-
Page 54: Circuit Operation
DC loop current. T POS101 D101 Q101 Q108 R124 D106 D101 The receiving signal flows: TEL line POS101 Q101 C113 R125 C108 Q109 Q405 Q406 Speaker The transmission signal flows Q421 Q424 C435 R437 Q108 Pos101 Tel Line http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1304010000.html (1 of 2)11.02.2008 12:57:38…
-
Page 55
TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1304010000.html (2 of 2)11.02.2008 12:57:38… -
Page 56: Tone Detect
13.5 Tone Detect TOP PREVIOUS NEXT This circuit is used to sense the status of the line (busy tone or dial tone) during Auto Redial. 13.5.1 Circuit operation TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1305000000.html11.02.2008 12:57:43…
-
Page 57: Circuit Operation
R201 R205 Pin 5 of IC201 Pin 1 of IC201 D202 R208 Q201 When the subscriber hangs-up, check the intermittent tone. If cycle tone is detected, the collector of Q201 goes to a low logic. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1305010000.html11.02.2008 12:57:46…
-
Page 58: Initializing Circuit
13.6 Initializing Circuit TOP PREVIOUS NEXT 13.6.1 Function 13.6.2 Circuit operation TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1306000000.html11.02.2008 12:57:51…
-
Page 59: Function
13.6.1 Function TOP PREVIOUS NEXT This circuit is used to initialize the microcomputer when it incorporates batteries. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1306010000.html11.02.2008 12:57:54…
-
Page 60: Circuit Operation
TOP PREVIOUS NEXT When the batteries is inserted into the unit, then the voltage is shifted by D304 and power is supplied to the CPU. The set can operate beyond point A in the circuit voltage diagram. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1306020000.html11.02.2008 12:57:58…
-
Page 61: Cpu Data
14 CPU DATA TOP PREVIOUS NEXT 14.1 IC801 TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1400000000x.html11.02.2008 12:58:08…
-
Page 62: Ic801
14.1 IC801 TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1401000000.html11.02.2008 12:58:11…
-
Page 63: How To Set The Flash Time And Redial Time
15 HOW TO SET THE FLASH TIME AND REDIAL TIME TOP PREVIOUS NEXT *Refer to SCHEMATIC DIAGRAM 15.1 Flash Time 15.2 Redial Time 15.3 Speakerphone IC Data TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1500000000x.html11.02.2008 12:58:17…
-
Page 64: Flash Time
D901-D904 are used for default setting. When you change the flash time, do the following procedure. In case the program should be set frequency, change the default at D901-D904, then set the program. 0= Without 1= With TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1501000000.html11.02.2008 12:58:27…
-
Page 65: Redial Time
15.2 Redial Time TOP PREVIOUS NEXT 0= Without 1= With TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1502000000.html11.02.2008 12:58:31…
-
Page 66: Speakerphone Ic Data
Input to the transmit detector system. The microphone amplifier output is ac coupled to the XDI pin through an external resistor. High current ground pin for the speaker amp output stage. The SKG voltage should be within 10 mV of the ground voltage at pin 22. http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1503000000.html (1 of 2)11.02.2008 12:58:35…
-
Page 67
Input of the receive attenuator. Input resistance is nominally 5.0 kohms. A resistor to ground determines the nominal gain of the receive attenuator. The receive channel gain is directly proportional to the RRX resistance. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1503000000.html (2 of 2)11.02.2008 12:58:35… -
Page 68: Block Diagram (Ic 1)
16 BLOCK DIAGRAM (IC 1) TOP PREVIOUS NEXT 16.1 Communication ICs TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1600000000x.html11.02.2008 12:58:43…
-
Page 69: Communication Ics
16.1 Communication ICs TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1601000000.html11.02.2008 12:58:46…
-
Page 70: Module Block Diagram
17 MODULE BLOCK DIAGRAM TOP PREVIOUS NEXT 17.1 MODULE BLOCK DIAGRAM 17.2 CONNECTOR PIN ASSIGNMENT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1700000000x.html11.02.2008 12:58:51…
-
Page 71: Module Block Diagram
17.1 MODULE BLOCK DIAGRAM TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1701000000.html11.02.2008 12:58:54…
-
Page 72: Connector Pin Assignment
17.2 CONNECTOR PIN ASSIGNMENT TOP PREVIOUS NEXT signal Function Enable Power Supply (5V) VLCD LCD Power Input Power Gnd (0V) DATA Serial Data Input Write Data H, L Chip Selection H, L TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1702000000.html11.02.2008 12:58:59…
-
Page 73: How To Replace A Flat Package Ic
18 HOW TO REPLACE A FLAT PACKAGE IC TOP PREVIOUS NEXT 18.1 Preparation 18.2 Procedure 18.3 Removing Solder from Between Pins TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1800000000x.html11.02.2008 12:59:09…
-
Page 74: Preparation
We recommend a 30 to 40 Watt soldering iron. An expert may be able to use a 60 to 80 Watt iron where someone with less experience could overheat and damage the PCB foil. Flux Recommended Flux: Specific Gravity 0.82. Type RMA (lower residue, non-cleaning type) Note: ABOUT LEAD FREE SOLDER (PbF: Pb free) TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1801000000.html11.02.2008 12:59:11…
-
Page 75: Procedure
3. Being careful to not unsolder the tack points, slide the soldering iron along the tips of the pins while feeding enough solder to the tip so that it flows under the pins as they are heated. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1802000000.html11.02.2008 12:59:16…
-
Page 76: Removing Solder From Between Pins
1. Add a small amount of solder to the bridged pins. 2. With a hot iron, use a sweeping motion along the flat part of the pin to draw the solder from between the adjacent pads. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1803000000.html11.02.2008 12:59:21…
-
Page 77: Terminal Guide Of The Ics, Transistors And Diodes
19 TERMINAL GUIDE OF THE ICs, TRANSISTORS AND DIODES TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s1900000000x.html11.02.2008 12:59:29…
-
Page 78: Cabinet And Electrical Parts Location
20 CABINET AND ELECTRICAL PARTS LOCATION TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2000000000x.html11.02.2008 12:59:33…
-
Page 79
(1 of 2)11.02.2008 12:59:35… -
Page 80
(2 of 2)11.02.2008 12:59:35… -
Page 81: Accessory And Packing Materials
21 ACCESSORY AND PACKING MATERIALS TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2100000000x.html11.02.2008 12:59:44…
-
Page 82
12:59:47… -
Page 83: Replacement Parts List
4. ISO code (Example: ABS-94HB) of the remarks column shows quality of the material and a flame resisting grade about plastics. 5. RESISTORS & CAPACITORS Unless otherwise specified; All resistors are in ohms (Ω) K=1000Ω, M=1000kΩ All capacitors are in MICRO FARADS (μF) P=μμF *Type & Wattage of Resistor http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2200000000p.html (1 of 2)11.02.2008 12:59:55…
-
Page 84
22.1 Base Unit 22.1.1 Cabinet and Electrical Parts 22.1.2 Main P.C. Board Parts 22.2 ACCESSORIES AND PACKING MATERIALS TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2200000000p.html (2 of 2)11.02.2008 12:59:55… -
Page 85: Base Unit
22.1 Base Unit TOP PREVIOUS NEXT 22.1.1 Cabinet and Electrical Parts 22.1.2 Main P.C. Board Parts TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201000000.html11.02.2008 13:00:01…
-
Page 86: Cabinet And Electrical Parts
PQJC10045Z BATTERY TERMINAL, (-) PQJC313Y BATTERY TERMINAL, (+)(-) PQJC314Y BATTERY TERMINAL, (-)(+) PQQT22344Z LABEL, CAUTION PQSX10186Y KEYBOARD SWITCH, 20KEY PQSX10187Z KEYBOARD SWITCH, 6KEY PQGP10190Z1 PANEL, LCD PC-HB PQGT16024Z NAME PLATE PQMG10025Z RUBBER PARTS, MIC COVER TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201010000.html11.02.2008 13:00:04…
-
Page 87: Main P.c. Board Parts
2SK1398 TRANSISTOR(SI) Q105 2SD1819A TRANSISTOR(SI) Q106 2SA933 TRANSISTOR(SI) Q107 2SD1819A TRANSISTOR(SI) Q108 2SC2120 TRANSISTOR(SI) Q109 2SD1819A TRANSISTOR(SI) Q201 UN5213 TRANSISTOR(SI) Q302 2SD1819A TRANSISTOR(SI) Q303 2SB1218A TRANSISTOR(SI) Q310 2SD1819A TRANSISTOR(SI) Q401 PQVTFB1J3P TRANSISTOR(SI) Q405 2SD1819A TRANSISTOR(SI) http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (1 of 10)11.02.2008 13:00:10…
-
Page 88
MA4180 DIODE(SI) D105 1SS119 DIODE(SI) D106 MA4062 DIODE(SI) D202 MA111 DIODE(SI) D203 MA111 DIODE(SI) D301 MA111 DIODE(SI) D302 1SS119 DIODE(SI) D304 1SS119 DIODE(SI) D305 MA111 DIODE(SI) D308 1SS119 DIODE(SI) D401 MA111 DIODE(SI) D601 1SS119 DIODE(SI) http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (2 of 10)11.02.2008 13:00:10… -
Page 89
EVNDXAA03B54 VARIABLE RESISTOR VR402 EVNDXAA03B52 VARIABLE RESISTOR VR901 EVNDXAA03B15 VARIABLE RESISTOR (RESISTORS) ERDS1VJ682 6.8K ERJ3GEYJ183 ERJ3GEYJ334 330K ERJ3GEYJ124 120K ERJ3GEY0R00 ERJ3GEYJ683 ERJ3GEYJ473 ERJ3GEYJ222 2.2K ERJ3GEYJ334 330K R100 ERJ3GEYJ104 100K R101 ERDS2TJ394 390K R102 ERJ3GEYJ104 100K R103 ERJ3GEYJ105 http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (3 of 10)11.02.2008 13:00:10… -
Page 90
ERJ3GEYJ334 330K R130 ERJ3GEYJ272 2.7K R131 ERJ3GEYJ332 3.3K R184 ERJ3GEY0R00 R185 ERJ3GEY0R00 R201 ERDS2TJ103 R202 ERJ3GEYJ124 120K R203 ERJ3GEYJ103 R204 ERJ3GEYJ394 390K R205 ERJ3GEYJ562 5.6K R206 ERJ3GEYJ183 R207 ERJ3GEYJ103 R208 ERJ3GEYJ472 4.7K R209 ERJ3GEYJ104 100K http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (4 of 10)11.02.2008 13:00:10… -
Page 91
2.2M R407 ERJ3GEYJ222 2.2K R408 ERJ3GEYJ681 R409 ERJ3GEYJ223 R410 ERJ3GEYJ564 560K R411 ERJ3GEYJ681 R412 ERJ3GEYJ822 8.2K R421 ERJ3GEYJ272 2.7K R423 ERJ3GEY0R00 R424 ERJ3GEYJ334 330K R425 ERJ3GEYJ225 2.2M R426 ERJ3GEYJ272 2.7K R427 ERJ3GEYJ121 R428 ERJ3GEYJ562 5.6K http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (5 of 10)11.02.2008 13:00:10… -
Page 92
ERJ3GEYJ225 2.2M R606 ERJ3GEYJ303 R607 ERJ3GEYJ683 R608 ERJ3GEYJ682 6.8K R609 ERJ3GEYJ335 3.3M R610 ERJ3GEYJ104 100K R611 ERJ3GEYJ183 R612 ERJ3GEYJ472 4.7K R613 ERJ3GEYJ104 100K R614 ERJ3GEYJ473 R615 ERJ3GEYJ103 R617 ERJ3GEYJ472 4.7K R618 ERJ3GEYJ222 2.2K R619 ERJ3GEYJ103 http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (6 of 10)11.02.2008 13:00:10… -
Page 93
R901 ERJ3GEYJ103 R902 ERJ3GEYJ103 R903 ERJ3GEYJ474 470K R921 ERJ3GEYJ103 R923 ERJ3GEYJ393 C600 ERJ3GEY0R00 C623 ERJ3GEY0R00 D310 PQ4R10XJ000 D311 PQ4R10XJ000 ERJ3GEY0R00 ERJ3GEY0R00 J110 ERJ3GEY0R00 J111 ERJ3GEY0R00 J115 ERJ3GEY0R00 J117 ERJ3GEY0R00 J120 PQ4R10XJ000 L401 PQ4R18XJ000 (CAPACITORS) ECQE2E105KZ http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (7 of 10)11.02.2008 13:00:10… -
Page 94
ECUV1H222KBV 0.0022 C204 ECUV1C473KBV 0.047 C205 PQCUV1C224KB 0.22 C301 ECA0JM471 470P C302 ECEA0JKA331 C303 ECEA0JU331 C304 PQCUV1H333JC 0.033 C306 ECUV1C104ZFV C308 ECEA0JKA221 C310 ECEA1CKS470 C404 ECUV1C104KBV 0.1 C405 ECUV1C104KBV 0.1 C408 ECUV1H472KBV 0.0047 C414 ECEA1CKA100 http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (8 of 10)11.02.2008 13:00:10… -
Page 95
ECEA1HKA010 C612 ECEA1VKS4R7 C613 ECUV1C683KBV 0.068 C614 ECEA1EU470 C615 ECEA0JU220 C616 ECUV1C104KBV 0.1 C617 ECEA1CKS470 C618 ECEA1VU330 C619 ECEA1VKS4R7 C620 ECUV1H183KBV 0.018 C621 ECEA0JKA101 C622 ECUV1C104KBV 0.1 C624 ECUV1H103KBV 0.01 C625 ECEA1AU101 C801 ECUV1H103KBV 0.01 http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (9 of 10)11.02.2008 13:00:10… -
Page 96
ECUV1H103KBV 0.01 C905 ECUV1H103KBV 0.01 C921 ECUV1H332KBV 0.0033 C922 ECUV1H821KBV 820P C923 ECUV1H122KBV 0.0012 (OTHERS) L5DCBJC00001 LIQUID CRYSTAL DISPLAY PQJM122Z MICROPHONE PQVIPC817CD PHOTO ELECTRIC TRANSDUCER SA101 PQVDDSS301L VARISTOR (SURGE ABSORBER) PQLT2D2A TRANSFORMER TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2201020000.html (10 of 10)11.02.2008 13:00:10… -
Page 97: Accessories And Packing Materials
TOP PREVIOUS NEXT Ref. No. Part No. Part Name & Description Remarks PQJA10075Z CORD, TELEPHONE PQJA212V CORD, HANDSET PQJXC0401Z HANDSET ABS-HB PQKL10038Y3 STAND, WALL ABS-HB MOUNT PQQW12534Y LEAFLET PQQX13229X INSTRUCTION BOOK PQPH89Y PROTECTION COVER PQPK13984Z GIFT BOX TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2202000000.html11.02.2008 13:00:19…
-
Page 98: For Schematic Diagram (Schematic Diagram)
2. This schematic diagram may be modified at any time with the development of new technology. Important Safety Notice: Components identified by mark have special characteristics important for safety. When replacing any of these components, use only the manufacturer´sspecified parts. TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2300000000x.html11.02.2008 13:00:23…
-
Page 99: Schematic Diagram
24 SCHEMATIC DIAGRAM TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2400000000x.html11.02.2008 13:00:40…
-
Page 100
C625 10V100 D651 C654 RINGER C603 K0.033 R605 R655 2.2M IC601 (for T2362RU) R611 R606 R607 IC651 R652 C652 R612 C609 K0.1 C615 4.7K 6.3V22 R602 C606 C610 50V1 1.2K R613 100K TP612 K0.068 C607 C620 C608 R608 6.8K K0.027 C619 K0.018 (5.7V) -
Page 101
(only T2375) 2.7V BATTN The voltage during ON-Hook is indicated. R313 100K ) shows the voltage during OFF-Hook. Handset & Headset Incoming Signal Speaker Phone Incoming Signal Handset Set & Headset Outgoing Signal Speaker Phone Outgoing Signal KX-TS2365RUB : SCHEMATIC DIAGRAM… -
Page 102: Circuit Board
25 CIRCUIT BOARD TOP PREVIOUS NEXT 25.1 Component View 25.2 Flow Solder Side View TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2500000000x.html11.02.2008 13:01:00…
-
Page 103: Component View
25.1 Component View TOP PREVIOUS NEXT TOP PREVIOUS NEXT http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2501000000.html11.02.2008 13:01:02…
-
Page 104
IC651 SP-SHONE IC302 IC201 IC801 KX-TS2365RUB CIRCUIT BOARD (Component View) -
Page 105: Flow Solder Side View
25.2 Flow Solder Side View TOP PREVIOUS TOP PREVIOUS http://202.224.189.179/view_new/OT/KX-TS2365RUB/SVC/s2502000000.html11.02.2008 13:01:11…
-
Page 106
D105 C202 R201 C901 C101 C102 C105 Q191 VR601 C308 J102 VR901 VR402 C114 VR401 R192 R194 R191 IC601 C621 C401 C619 C427 D308 R654 D421 C651 C618 SW101 C625 KX-TS2365RUB CIRCUIT BOARD (Flow Solder Side View)
Узнавай о новинках и акциях первым
Вы успешно зарегистрированы на сайте.
Вам доступен личный кабинет пользователя.
Перейти к покупкам
Ваш пароль воcстановлен!
Теперь вы можете полноценно пользоваться
всеми возможностями нашего интернет-магазина.
Здравствуйте, Ваша претензия принята и зарегистрирована.
В течение 3-х рабочих дней Вам, на электронную почту, будет дан письменный ответ. В случае возникновения дополнительных вопросов, менеджер претензионного отдела свяжется с Вами.
Перейти к покупкам
Ваше сообщение об ошибке на сайте успешно отправлено.
Большое спасибо!
Добавить отзыв о магазине
Торг для данного товара сейчас не возможен!
Сколько вы готовы заплатить за этот товар?
Введите ваше ценовое предложение
Мы согласны с вашим предложением
Мы принимаем вашу цену, и вы можете купить товар по цене:
0 руб.
04:55
Радиотелефон DECT Panasonic KX-TG2511RUM
04:05
Panasonic KX-TU150: простой мобильный телефон с крупными кнопками и функцией SOS
09:01
Обзор Panasonic KX-MB1500 RU
10:11
PANASONIC с Wi-Fi PANASONIC KX-PRW120RU Ozon.ru
15:54
Перевод звонка телефонов
01:44
Распаковка Panasonic KX-TS2365UAW White
01:35
ОБЗОР СТАЦИОНАРНОГО ТЕЛЕФОНА PANASONIC
05:09
Panasonic KX TS2365RUW
пожалуйста
,
прочитайте
перед
эксплуатацией
и
СОХРАНИТЕ.
Перед первоначальным включением
Благодарим Bac за то, что Вы выбрали именно этот
универсальный телефонный аппарат фирмы
Panasonic.
Для вашего сведения
Серийный №
(указан на нижней стороне аппарата)
Торгующая организация и ее адрес
Дата покупки
Принадлежности (входят в комплект поставки)
□ Телефонная трубка (стр. 7)
один комплект
□ Телефонный шнур (стр. 7)
□ Провод телефонной трубки
(стр. 7)
один комплект
□ Переходник для настенного
крепления (стр. 14)
один комплект
2
Содержание Подготовка к работе Расположение органов управлен…
Страница 3
- Изображение
- Текст
Расположение органов управления
Кнопка
(DIAL LOCK)
(ctp. 27)
Кнопка
(PROGRAM)
(ctp. 9, 18)
Кнопка
(TONE)
(ctp. 23)
Гнездо
гарнитуры
(ctp. 29)
Дисплей (стр. 5)
Переключатель звонка
(RINGER) (стр. 13)
Кнопки VOLUME
^(стр. 16)
MIC
(Микрофон)
(стр. 15, 17)
Кнопка
(MUTE)
(стр. 9, 24)
Кнопки однокнопочного
автоматического набора
номера (стр. 20)
Кнопка
(AUTO/LOWER)
(стр. 18, 21)
Индикатор звонка
RINGER (стр. 17)
Кнопка
(PAUSE)
(стр. 23)
Кнопка
(REDIAL)
(стр. 15)
Кнопка
(FLASH)
(стр. 23, 25)
Кнопка
(HOLD)
(стр. 16)
Кнопка и индикатор (SP-PHONE/HEADSE
t
) (стр. 15, 17, 30)
4
Дисплей
о о о о о о о о о о о о о о о о
и и и и и и и и и и и и и и и и
-I- 8Ì л ©ЕШВ-0 —о а
(Этот дисплей отображает все возможные конфигурации.)
Б-Ви ■ B режиме ожидания дисплей показывает текущее
время (показано время 9:30).
ОЕ- 1Ч~Зи : Во время разговора отображается его длительность.
(показана продолжительность 2 часа 14 минут 30
секунд).
F
Р
S
при нажатии [FLASH]
при нажатии [PAUSE] во время сохранения номера в памяти.
при наборе была нажата ^.
при наборе была нажата [#].
—: при нажатии [AUTO/LOWER] (стр. 18, 21).
!8J : во время разговора была нажата клавиша [MUTE] (стр. 24).
Л : телефон во время удержания линии воспроизводит абоненту
музыку.
© ЕЮ : телефон в режиме настройки часов.
“О : Аппарат находится в режиме программирования (стр. 9).
■“О : Установлен режим блокировки набора. Процедура снятия
блокировки описана на стр. 27.
CZI : такой символ будет мигать если батареи разряжены.
Замените батареи см. стр. 31.
5
Установка и настройка
Установка батарей
1. Нажмите на крышку в
направлении стрелки и снимите
её.
2. Установите батареи указанным
способом, соблюдая полярность.
3. Закройте крышку батарейного
отсека.
• Батареи в комплект телефона не входят.
• Используйте три высококачественные щелочные (алкалиновые) батареи
типа “1Р6”.
Срок службы батарей приблизительно 6 месяцев.
• Батареи необходимы для правильной работы следующих функций:
—Дисплей (стр. 5)
—кнопок при повешенной трубке
—громкой связи (стр. 15, 17)
—программирования (стр. 9)
6
Подключение телефонной трубки и
телефонного шнура
После подключения снимите телефонную трубку и убедитесь в
наличии гудка.
• Применять только телефонную трубку фирмы Panasonic для
KX-TS2365RUW.
Установка и настройка
Подключение устройств передачи
данных
Если к телефоной линии требуется подключить ещё одно
устройство (компьютер, модем, факс, автоответчик и т.д.), это
можно сделать через телефон используя гнездо DATA.
Телефонный шнур устройства передачи данных следует вставить в
гнездо DATA после подключения к аппарату телефонной трубки,
сетевого адаптера и телефонного шнура (стр. 7).
• Перед пользованием аппаратом (для набора номера, записи номеров в
память и пр.) следует убедиться, что он в данный момент не используется
устройством передачи данных, поскольку в этом случае может произойти
сбой в передаче.
8
Программирование. Введение
Вы можете запрограммировать указанные ниже функции.
Диаграмма показывает инструкции по программированию. За
дополнительной информацией по функциям см. соответствующие
страницы.
Убедитесь, что телефон не находится в режиме удержания вызова.
Нажмите кнопку (PROGRAM].
Нажмите кнопку (MUTE]
• Запрет вызовов,
нажмите
(1]
. (стр. 28)
• Изменение времени сигнала FLASH,
нажмите
(2]
. (стр. 25)
• Выбор режима набора номера,
нажмите
(3]
. (стр. 10)
• ВКЛ/ВЫКЛ музыки в режиме удержания линии,
нажмите
(4]
. (стр. 24)
• Смена PIN кода для блокировки набора номера и запрета
вызовов,
нажмите
[б]
. (стр. 26)
• Настройка времени,
нажмите
(б]
. (стр. 11)
• Изменение контраста LCD дисплея,
нажмите
[7]
. (стр. 12)
Нажмите (PROGRAM] чтобы сохранить настройку.
• Вы можете выйти из режима программирования в любой момент нажав
(PROGRAM].
• Если Вы не нажали ни одной клавиши в течение 60 секунд, телефон
вернётся в режим ожидания.
9
Установка и настройка
Выбор режима набора
Мы можете выбрать необходимый режим набора номера c помощью
программирования. Если вы подключены к ATC работающей в
тоновом режиме набора номера установите настройку “Tone”. B
противном случае установите её в “Pulse”. Телефон поставляется с
заводской настройкой “Pulse”.
Убедитесь, что телефон не находится в режиме удержания вызова.
1
2
Нажмите кнопку (PROGRAM)
Нажмите кнопку (MUTE)
F-
■о
3
Нажмите кнопку (3).
• На дисплее отобразится текущая
установка.
F3
PLS
■о
4
TONE” нажмите
F3
ban
■о
кнопку ^
или
Для выбора “PULSE” нажмите
кнопку ^.
5
Нажмите кнопку (PROGRAM).
• Прозвучит длительный звуковой
сигнал.
•Телефон возвратится в режим
ожидания.
10
Комментарии
Molejv £ KX-TS2365RUW Iyhkunn nmgyjvchofo njn tohajvhofo ha°opa Nhctpykunr go ˙kcgjyataunn Golfotobka k pa°ote NhtefpnpobahhsØ tejeioh Ochobhse ogepaunn Pacwnpehhse iyhkunn GojeÎhar nhiopmaunr GO·AJYÆCTA, GPO¨NTAÆTE GEPEL ÍKCGJYATAUNEÆ N COXPAHNTE.
Gepel gepboha≠ajvhsm bkjd≠ehnem øjafolapnm Bac Îa to, ≠to Bs bs°pajn nmehho ˙tot yhnbepcajvhsØ tejeiohhsØ aggapat inpms Panasonic. Ljr bawefo cbelehnr CepnØhsØ £ Lata gokygkn (ykaÎah ha hnÒheØ ctopohe aggapata) Topfydqar opfahnÎaunr n ee alpec GpnhaljeÒhoctn (bxolrt b komgjekt goctabkn) ∑
ColepÒahne Golfotobka k pa°ote Golfotobka k pa°ote Ochobhse ogepaunn PacgojoÒehne opfahob ygpabjehnr . . . . . . . . . . . . . . . . . . . 14 LncgjeØ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Yctahobka n hactpoØka . . . . . . . . . . . . . . . . . . .
PacgojoÒehne opfahob ygpabjehnr Khogka (DIALLOCK) (ctp. 27) Khogka (PROGRAM) (ctp. 9, 18) LncgjeØ (ctp. 5) Gepekjd≠atejv Îbohka (RINGER) (ctp. 13) Khogka (TONE) (ctp. 23) FheÎlo faphntyps (ctp. 29) LOWE R MU UTTE TIME EM PRO GH GRA DIAL M ERG ENC LOCK AB C RS TU PAU RE YZ NE VO LU FL ME HO MU TE S
LncgjeØ Golfotobka k pa°ote (Ítot lncgjeØ oto°paÒaet bce boÎmoÒhse kohinfypaunn.) : B peÒnme oÒnlahnr lncgjeØ gokaÎsbaet tekyqee bpemr (gokaÎaho bpemr 9:30). : Bo bpemr paÎfobopa oto°paÒaetcr efo ljntejvhoctv. (gokaÎaha gpolojÒntejvhoctv 2 ≠aca 14 mnhyt 30 cekyhl). : gpn haÒatnn (FLASH). : gpn
Yctahobka n hactpoØka Yctahobka °atapeØ 1. HaÒmnte ha kpswky b hagpabjehnn ctpejkn n chnmnte e∏. + + + 2 2. Yctahobnte °atapen ykaÎahhsm cgoco°om, co°jdlar gojrphoctv. 3. „akpoØte kpswky °atapeØhofo otceka. 1 ≥øatapen b komgjekt tejeioha he bxolrt. ≥NcgojvÎyØte tpn bscokoka≠ectbehhse qejo≠hse
“ Golfotobka k pa°ote Golkjd≠ehne tejeiohhoØ tpy°kn n tejeiohhofo whypa Gocje golkjd≠ehnr chnmnte tejeiohhyd tpy°ky n y°elntecv b hajn≠nn fylka. Tejeiohhar tpy°ka Gpobol tejeiohhoØ tpy°kn TejeiohhsØ whyp LINE DATA DA K poÎetke olhokahajvhoØ tejeiohhoØ jnhnn ≥Gpnmehrtv tojvko tejeiohhyd tpy°ky inpms
“ Yctahobka n hactpoØka Golkjd≠ehne yctpoØctb gepela≠n lahhsx Ecjn k tejeiohoØ jnhnn tpe°yetcr golkjd≠ntv eq∏ olho yctpoØctbo (komgvdtep, molem, iakc, abtootbet≠nk n t.l.), ˙to moÒho clejatv ≠epeÎ tejeioh ncgojvÎyr fheÎlo DATA. TejeiohhsØ whyp yctpoØctba gepela≠n lahhsx cjelyet bctabntv b fheÎlo
“ Golfotobka k pa°ote Gpofpammnpobahne. Bbelehne Bs moÒete Îagpofpammnpobatv ykaÎahhse hnÒe iyhkunn. Lnafpamma gokaÎsbaet nhctpykunn go gpofpammnpobahnd. „a logojhntejvhoØ nhiopmauneØ go iyhkunrm cm. cootbetctbydqne ctpahnus. Y°elntecv, ≠to tejeioh he haxolntcr b peÒnme ylepÒahnr bsÎoba. HaÒmnte
“ Yctahobka n hactpoØka Bs°op peÒnma ha°opa Ms moÒete bs°patv heo°xolnmsØ peÒnm ha°opa homepa c gomoqvd gpofpammnpobahnr. Ecjn bs golkjd≠ehs k ATC pa°otadqeØ b tohobom peÒnme ha°opa homepa yctahobnte hactpoØky “Tone”. B gpotnbhom cjy≠ae yctahobnte e∏ b “Pulse”. Tejeioh goctabjretcr c ÎabolckoØ
“ Y°elntecv, ≠to tejeioh he haxolntcr b peÒnme ylepÒahnr bsÎoba. 1 2 3 4 HaÒmnte khogky (PROGRAM). HaÒmnte khogky (MUTE). Golfotobka k pa°ote Yctahobka bpemehn HaÒmnte khogky (6). Bbelnte tekyqee bpemr (≠ac n mnhyts) b bnle 4-Îha≠hofo ≠ncja. (Gpnmep: Ljr yctahobkn 9:30 bbelnte “0930”.) ≥Bbelnte
“ Yctahobka n hactpoØka Yctahobka kohtpacta LCD lncgjer Bs moÒete bs°patv ypobehv kohtpacthoctn LCD lncgjer ot 1 lo 4 gpn gomoqn gpofpammnpobahnr. C Îabola tejeioh goctabjretcr c hactpoØkoØ 3. Y°elntecv, ≠to tejeioh he haxolntcr b peÒnme ylepÒahnr bsÎoba. 1 HaÒmnte khogky (PROGRAM). 2 HaÒmnte
“ Bs moÒete bs°patv HIGH (bscokar), LOW (hnÎkar), OFF (bskjd≠eho) fpomkoctv Îbohka. „abolckar gpelyctahobka—HIGH. Gepekjd≠atejv Îbohka RINGER: Yctahobnte b HIGH OFF LOW gojoÒehne HIGH, RINGER LOW njn OFF. ≥Gpn yctahobke b OFF tejeioh he °ylet Îbohntv. Golfotobka k pa°ote Yctahobka ypobhr fpomkoctn
“ Yctahobka n hactpoØka Hactehhar yctahobka aggapata LahhsØ aggapat moÒet °stv yctahobjeh ha ctehe. 1 Halabnte ha inkcatop tejeiohhoØ tpy°kn lo qej≠ka, ≠to°s tpy°ka lepÒajacv ha kpd≠ke. 2 CjoÒnte tejeiohhsØ whyp bhytpn hactehhofo inkcatopa n halabnte ha hefo b ykaÎahhom ctpejkoØ hagpabjehnn.
„bohok a°ohehty “ Bs moÒete goÎbohntv, gpocto golhrb tejeiohhyd tpy°ky. Ljr paÎzelnhehnr gojoÒnte tejeiohhyd tpy°ky. VOLUME (_), (^) MIC (Mnkpoioh) (HOLD) Khogka n nhlnkatop (SP-PHONE/HEADSET) GojvÎobahne fpomkoØ cbrÎvd 1 2 HaÒmnte khogky (SP-PHONE/HEADSET). ≥„afopntcr pacgojoÒehhsØ prlom
“ „bohok a°ohehty Pefyjnpobka ypobhr fpomkoctn b tejeiohhoØ tpy°ke (4 ypobhr) njn fpomkofobopnteje (8 ypobheØ) bo bpemr paÎfobopa Ljr ybejn≠ehnr ypobhr fpomkoctn haÒmnte khogky VOLUME (^). Ljr ymehvwehnr ypobhr fpomkoctn haÒmnte khogky VOLUME (_). Hagpnmep: Ypobehv fpomkoctn b tejeiohhoØ tpy°ke
Otbet ha Îbohok Gpn goctygjehnn bsÎoba paÎlaetcr Îbohok n ha≠nhaet mnfatv nhlnkatop Îbohka RINGER. Bs moÒete otbetntv ha Îbohok gpocto golhrb tejeiohhyd tpy°ky. Khogka n nhlnkatop (SP-PHONE/HEADSET) Ochobhse ogepaunn MIC Nhlnkatop Îbohka RINGER Gpn gojvÎobahnn fpomkoØ cbrÎvd 1 2 3 HaÒmnte khogky
CkopocthoØ ha°op homepa „agncv tejeiohhsx homepob b gamrtv B gamrtn moÒet xpahntvcr lo 10 tejeiohhsx homepob. Khogkn ckopocthofo ha°opa ((0)–(9)) cootbetctbydt homepam r≠eek bhytpehheØ gamrtn. Ljr gpelygpeÒlehnr c°oeb he cjelyet gojvÎobatvcr ˙tnmn r≠eØkamn gamrtn, ecjn b hnx he Îagncahs
Ljr ylajehnr Îagncahhofo b gamrtv homepa tejeioha 1 2 3 HaÒmnte khogky (PROGRAM). HaÒmnte khogky (AUTO/LOWER). Bbelnte homep r≠eØkn gamrtn ((0) lo (9)) fle xpahntcr homep tejeioha kotopsØ halo ylajntv. ≥GpoÎby≠nt ljntejvhsØ ÎbykoboØ cnfhaj. ≥Tejeioh boÎbpatntcr b peÒnm oÒnlahnr. Ha°op Îagncahhsx b
Ha°op homepa haÒatnem olhoØ khogkn „agncv tejeiohhsx homepob b gamrtv Bs moÒete coxpahntv lo 20 homepob tejeiohob b gamrtn olhokhogo≠hofo ha°opa (10 homepob b UPPER–bepxhnx r≠eØkax gamrtn, 10 homepob b LOWER–hnÒhnx r≠eØkax). Ljr gpelygpeÒlehnr c°oeb he cjelyet haÒnmatv khogkn c homepom r≠eek
“ Coxpahehne homepob b hnÒhnx r≠eØkax gamrtn 1 2 HaÒmnte khogky (PROGRAM). Bbelnte tejeiohhsØ homep ljnhoØ lo 22 unip. ≥Ecjn Bs bbejn hegpabnjvhsØ homep, haÒmnte (PROGRAM) n gobtopnte gpouelypy ha≠nhar c 1 wafa. 3 4 HaÒmnte khogky (AUTO/LOWER). HaÒmnte olhy nÎ khogok olhokhogo≠hofo abtomatn≠eckofo
“ Ha°op homepa haÒatnem olhoØ khogkn Ha°op Îagncahhsx b gamrtv homepob NÎ bepxhnx r≠eek gamrtn: 1 2 Golhnmnte tpy°ky njn haÒmnte khogky (SP-PHONE/HEADSET). HaÒmnte heo°xolnmyd kjabnwy olhokhogo≠hofo ha°opa homepa. ≥Oto°paÎntcr coxpah∏hhsØ b gamrtn homep n ha≠h∏tcr efo ha°op. NJN NÎ hnÒhnx r≠eek
Cgeunajvhse iyhkunn “ (DIALLOCK) (PROGRAM) (TONE) (PAUSE) (FLASH) (MUTE) Ljr gojvÎobatejeØ iyhkunn oÒnlahnr bsÎoba HaÒmnte khogky (FLASH), ecjn Bs b gpouecce paÎfobopa cjswnte tohajvhsØ cnfhaj oÒnlahnr bsÎoba. ≥GepbsØ bsÎob yctahabjnbaetcr b peÒnm ylepÒahnr, n Bs moÒete otbetntv ha btopoØ bsÎob.
“ Cgeunajvhse iyhkunn Bskjd≠ehne mnkpoioha b gpouecce paÎfobopa B gpouecce paÎfobopa haÒmnte khogky (MUTE). ≥Ha lncgjee oto°paÎntcr cnmboj “ ”. ≥A°oheht he °ylet Bac cjswatv, ho Bs go-gpeÒhemy °ylete cjswatv efo. ≥Ljr gpolojÒehnr paÎfobopa bhobv haÒmnte khogky (MUTE). Bkjd≠ehne/Bskjd≠ehne myÎskn b
“ Khogka FLASH HaÒatne khogkn (FLASH) gpeloctabjret Bam boÎmoÒhoctv gpnmehehnr cgeunajvhsx iyhkunØ ot BaweØ uehtpajvhoØ YATC, hagpnmep, gepebola bhewhefo bsÎoba njn loctyga k cgeunajvhsm tejeiohhsm ycjyfam (logojhntejvho), taknm, kak oÒnlahne bsÎoba. Bs°op bpemehn kpatkobpemehhofo c°poca Bpemr
“ Cgeunajvhse iyhkunn Yctahobka PIN kola 4 paÎprlhsØ PIN (Personal Identification Number) kol gpelotbpaqaet loctyg k tejeiohy heygojhomo≠ehhsx jnu. PIN kol ncgojvÎyetcr gpn °joknpobke ha°opa n Îagpete bsÎobob. „abolckar gpelyctahobka PIN kola «1111». Y°elntecv, ≠to tejeioh he haxolntcr b peÒnme
“ øjoknpobka ha°opa homepa Bs moÒete gpelotbpatntv bce Îbohkn c Bawefo tejeioha, Îa nckjd≠ehnem Îagpofpammnpobahhofo b kjabnwe EMERGENCY olhokhogo≠hofo ha°opa homepa. Gpn °joknpobahnn khogok ha°opa he mofyt °stv ha°pahs laÒe homepa ˙kctpehhsx cjyÒ°. Lo chrtnr °joknpobkn °ylyt loctyghs tojvko
“ Cgeunajvhse iyhkunn „agpet ncxolrqnx bsÎobob MoÒho Îagpetntv ncgojvÎobahne aggapata ljr ha°opa homepob, ha≠nhadqnxcr c olhoØ njn lbyx gpelbapntejvho Îagpofpammnpobahhsx unip. Ncxolrqne Îbohkn, ha≠nhadqnecr c ˙tnx unip, he mofyt °stv ha°pahhs. Yctahobka Îagpeta ha ha°op ogpelejehhsx homepob
Gpn ha°opa tejeiohhofo homepa ha≠nhadqefocr c Îagpeqehhsx(oØ) unip(s), homep °ylet mnfatv ha lncgjee n he °ylet ha°npatvcr b jnhnd. Otmeha Îagpeta ha ha°op homepob Bsgojhnte wafn c 1 go 5 ha ctp. 28. Ha 6 wafe haÒmnte ($) ljr otmehs Îagpeta Îbohkob (oto°paÒaetcr “– –”) n haÒmnte (PROGRAM).
“ NcgojvÎobahne ogunohajvhoØ faphntyps „bohkn n otbets ha bsÎobs Y°elntecv, ≠to °atapen yctahobjehs. VOLUME (_), (^) Khogka n nhlnkatop (SP-PHONE/HEADSET) 1 2 HaÒmnte (SP-PHONE/HEADSET) ljr Îbohka njn otbeta ha bsÎob. ≥Mnfaet nhlnkatop SP-PHONE/HEADSET. ≥Ecjn bs own°jncv gpn ha°ope homepa, haÒmnte
„ameha °atapeØ Ecjn ha nhlnkatope mnfaet cnmboj “ ”–°atapen paÎprÒehs. Yctahobnte hobse °atapen. „amehnte °atapen b te≠ehne 1 mnhyts ljr coxpahehnr ÎagpofpammnpobahhoØ nhiopmaunn. — 1. HaÒmnte ha kpswky go hagpabjehnd ctpejkn n chnmnte e∏. + + + 2 2. „amehnte °atepen ha hobse co°jdlar gojrphoctv
Gepel tem kak o°patntvcr Îa gomoqvd Gpo°jema 32 Cgoco° yctpahehnr Aggapat he pa°otaet. ≥Gpobepvte hactpoØky aggapata (ctp. 6–14). ≥Bshvte °atapen n goctabvte nx o°patho, ≠to°s gponÎbectn nhnunajnÎaund tejeioha. He pa°otaet Îbohok aggapata. ≥„bohok otkjd≠eh (pefyjrtop ypobhr fpomkoctn yctahobjeh b
Nhctpykunn go texhnke °eÎogachoctn “ Oco°oe bhnmahne ylejrØte gpnbelehhsm hnÒe nhctpykunrm go texhnke °eÎogachoctn. Yctahobka aggapata Ycjobnr okpyÒadqeØ cpels 1) „agpeqaetcr ˙kcgjyatnpobatv aggapat b°jnÎn ncto≠hnkob bols, hagpnmep, bahh, pakobnh, moek n t.l. Cjelyet takÒe nΰefatv bjaÒhsx
“ Nhctpykunn go texhnke °eÎogachoctn GPELYGPE·LEHNE: BO N„øE·AHNE CJY¨AEB GO·APA NJN GOPA·EHNR ÍJEKTPN¨ECKNM TOKOM HE GOLBEPFAÆTE LAHHOE N„LEJNE BO„LEÆCTBND LO·LR NJN JDøOFO BNLA BJAFN. Gpn boÎhnkhobehnn jd°oØ hencgpabhoctn, otcoelnhnte aggapat ot tejeiohhoØ jnhnn n golcoelnhnte Îabelomo ncgpabhsØ
Matsushita Electric Industrial Co., Ltd. 35
Matsushita Electric Industrial Co., Ltd. 36
Matsushita Electric Industrial Co., Ltd. 37
Matsushita Electric Industrial Co., Ltd. 38
Matsushita Electric Industrial Co., Ltd. 39
Knyqy Mauywnta Íjektpnk Ko., Jtl. GponÎbeleho Knyqy Mauywnta Íjektpnk (MajaØÎnr) Clh. øxl. LÒoxop MajaØÎnr Kyushu Matsushita Electric Co., Ltd. Manufactured by Kyushu Matsushita Electric (Malaysia) Sdn. Bhd. Johor Malaysia PQQX13229ZA-BM F0901-0 D
Данная инструкция на русском языке предназначена для телефона
Panasonic KX-TS2365RUW, описывает принцип работы и основные моменты эксплуатации устройства.
Производитель настойчиво рекомендует перед включением телефона
внимательно изучить настоящую инструкцию.
Инструкция для телефона
представлена в формате PDF. Все современные браузеры уже поддерживают данный формат и сложностей с открытием файла возникнуть не должно.
Но если открыть инструкцию все же не удается, то необходимо установить на компьютер программу для чтения PDF файлов, например, Acrobat Reader. Если у вас возникли сложности с открытием инструкции на смартфоне под управлением Android, нужно установить, например, Adobe Acrobat Reader.
Комментарии (0)
Комментарии про другие Стационарные телефоны
Другие Стационарные телефоны Panasonic
